Intelligent displays – EVE4

What is a Riverdi Intelligent Display EVE4?

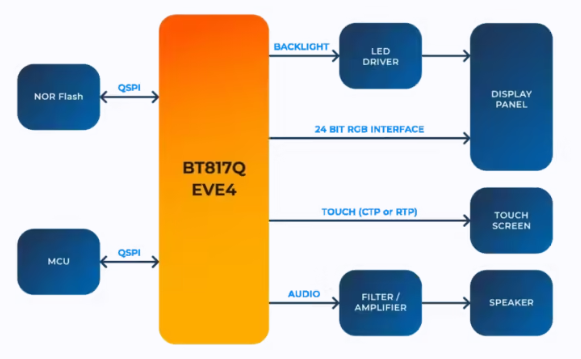

EVE4 is a high brightness IPS intelligent display series with BT817Q graphics controller. An intelligent display is a smart solution for integrating the video processing unit with the display, so the image is processed by the display itself. It is driven by Bridgetek EVE graphics controller – Embedded Video Engine. EVE display technology was developed with graphics and video applications in mind. It blends three major functionalities – audio, display, and touch.

The Power of Intelligent Display Technology

Intelligent display technology is a game-changer in the realm of display modules. It combines three major functionalities – audio, display, and touch, offering a seamless and interactive user experience. The intelligent series of displays, such as the Riverdi Intelligent Display, are designed with graphics and video applications in mind, making them ideal for a wide range of uses.

One such innovative product is the Riverdi EVE4 Intelligent Display, a series of intelligent display modules that are driven by the Bridgetek EVE graphics controller, also known as the Embedded Video Engine (EVE).

The Benefits of Intelligent Displays

Intelligent displays offer numerous benefits, making them a smart choice for any application: 

• Save processing resources, like memory and bandwidth.
• Spend less time and costs on programming.
• Create high-quality Human Machine Interfaces (HMIs).
• Set up and run your display with ease.
• Boost the overall cost-efficiency of the device.

What is EVE4 Intelligent Display Series

The EVE4 Intelligent Display Series is the latest offering in the intelligent screen market. This series combines the BT817Q – one of the most powerful graphics controller on the market – with an industrial-grade touch panel to bring you Riverdi Intelligent Displays. The EVE4 series is a high brightness IPS Intelligent Displays with BT817Q Bridgetek graphic controller, offering superior display intelligent capabilities.

Make the Switch to Intelligent Displays

If you’re currently using older generations of EVE FTDI/BRIDGETEK controllers, consider making the switch to the latest EVE4 series. The EVE4 series offers a smart solution for integrating the video processing unit with the display, allowing the image to be processed by the display itself.

A powerful graphics controller

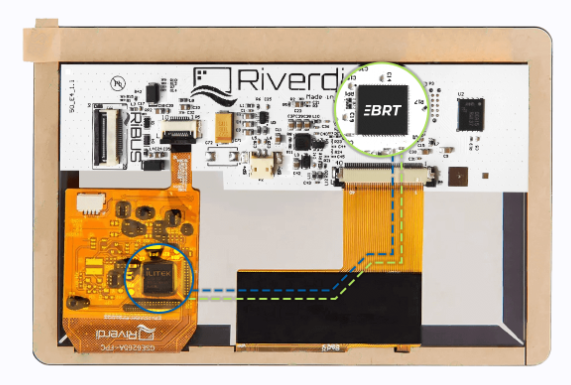

For the first time, the creation of a new communication protocol has enabled effective data interchange between the most powerful graphics controller BT817Q from Bridgetek and Capacitive Touch Panel controller ILI2132A from ILITEK. It is an industrial-grade touch controller that allows Riverdi Intelligent Displays to meet industrial, medical and military requirement.

High brightness, IPS TFT LCD Intelligent Display Modules

A high brightness, IPS TFT displays with an SPI/QSPI interface. Typical surface luminance is up to 1000 cd/m2 which means it is very bright even in bright environments. The full viewing angles of the IPS technology ensures that the display can be viewed from any angle without loss of color or contrast.

Industrial Touch Screen

The PCAP (Projected Capacity touch panel) is classified as ‘industrial’ when it is able to operate correctly in more demanding, harsh conditions, and react properly when touched by hands in gloves.

Main features:

• ILITEK Touch IC- ILI2132A, with 10 years guaranteed availability
• Multi-touch, up to 5 fingers
• Working with water on the surface

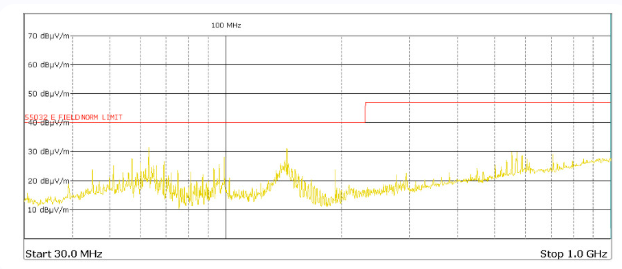

• Great EMC, RS and CS performance

High Resolution Displays Support with Intelligent Displays

The fourth generation of Embedded Video Engine technology brings us the BT817Q graphics controller with numerous improvements and extended capabilities when compared with the older version. The ‘most visible’ advantage is supporting resolution modes higher than ever before in the former three EVE generations. For the first time in the BT81x graphics controllers family, the resolutions WSVGA (1024 x 600 pixels) and WXGA (1280 x 800 pixels) are supported.

The Advantage of Adaptive Scalable Texture Compression (ASTC)

One of the most important advantages of the BT817Q controller, in comparison with the first two EVE versions, is the support for the Adaptive Scalable Texture Compression (ASTC) algorithm. This means the image quality can be enhanced significantly without the need for greater bandwidth. In certain situations, the compression algorithm allows for smaller graphic files to use compression without losing picture quality. This, in turn, saves up significant areas of memory space, required in EVE1 and EVE2 controllers by larger font files and data-heavy images.

2x Pixel Mode

Also implemented to EVE4 graphics controller for the first time is ‘2x pixel mode’. In this mode, picture is being refreshed simultaneously on two independent halves of the display which shortens the process by half and makes rapid changes of the image displayed super smooth.

Revolutionary Communication Protocol

For the first time, the creation of a new communication protocol has enabled effective data interchange between the most powerful graphics controller BT817Q from Bridgetek and Capacitive Touch Panel controller ILI2132A from ILITEK. It is an industrial-grade touch controller that allows Riverdi Intelligent Displays to meet industrial, medical and military requirements. Choose a display below to find out more.
