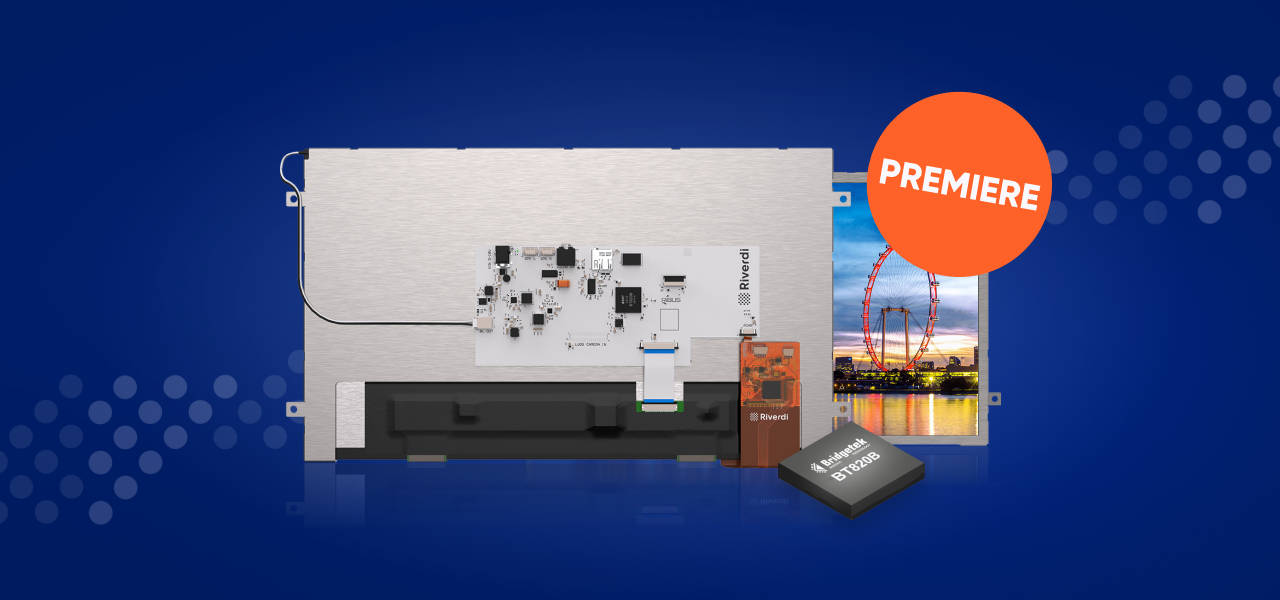

The demand for high-performance, adaptable, and easily integrated Human-Machine Interface (HMI) solutions continues to grow in the rapidly evolving landscape of digital systems. Riverdi is at the forefront of this transformation, announcing the official launch of the 15.6″ EVE5 Intelligent Display on September 30, 2025.
Powered by the advanced Bridgetek BT820B (EVE5) controller, this display marks a major milestone: an industrial Full HD module with synchronized audio-visual playback, enhanced ASTC compression, and an object-oriented programming model that simplifies development.
Strategic partnership driving innovation
The Riverdi 15.6″ EVE5 display fundamentally expands HMI capabilities by enabling seamless integration of live video feeds. It supports direct input from industrial cameras, advanced medical systems, and comprehensive security monitoring setups—eliminating the need for external video processing hardware.
This breakthrough is the result of close collaboration between Riverdi and Bridgetek, the manufacturer of the BT820B controller, which represents the fifth generation of the Embedded Video Engine (EVE) chip.
At the heart of the display, the powerful BT820B controller enables the development of advanced, touch-enabled interfaces on large LVDS screens with resolutions up to 1920×1200. Equipped with dedicated DDR3 memory and an optimized object-oriented programming model, the controller delivers smooth rendering of complex graphics without taxing the main microprocessor’s resources.
Compared to its predecessor, the EVE4 generation, the EVE5 module offers a 2.4x increase in resolution (1920×1080 versus 1280×800).
Technical specifications
Here are the detailed technical specifications of the EVE 5 15.6:
Display
| Parameter | Value | Key Benefits |
| Size | 15.6″ TFT IPS | Large IPS screen with vibrant colors and wide viewing angles |
| Resolution | 1920×1080 (Full HD) | High clarity and detail for industrial user interfaces |
| Brightness | 1000 cd/m² (no touch) / 850 cd/m² (with touch) | Excellent readability in bright environments |
| Viewing angles | Full | Consistent image quality from any angle |
| Active area | 345.76 × 195.19 mm | Large usable screen space |
| Color depth | 16.7M colors | Smooth gradients and rich visual presentation |
Controller – BT820B
| Parameter | Value | Key Benefits |
| Interfaces | SPI / Dual SPI / QuadSPI (up to 30 MHz) | Flexible connectivity options |
| Video output | LVDS Tx up to 1920×1200 | Supports high-resolution displays |
| Video input | LVDS Rx up to 1920×1200 at 60 fps | Enables live video feed integration |
| External memory | DDR3 SDRAM (4 Gbit) via integrated controller | Fast external buffer for smooth rendering |
| Flash storage | 128 MB (1 Gbit) QuadSPI NOR Flash | Sufficient storage for firmware and assets |
| Audio output | Stereo PWM / Delta-Sigma or I²S | Flexible sound output capability |
| Touch support | External I²C capacitive controller (ILI2510) | Seamless integration with advanced touch panels |
| GPIO | 16 available pins | Easy interfacing with external devices and sensors |
Touch Panel
| Parameter | Value | Key Benefits |
| Controller | ILI2510 (high SNR) | Accurate and stable touch detection |
| Interface | USB / I²C (optional UART) | Flexible integration options |
| Multi-touch | Up to 10 fingers | Supports complex and responsive gestures |
| Glove support | Operates with double gloves | Suitable for industrial and outdoor use |
| Water resistance | Operates with water on the surface | Reliable in wet or humid environments |
| EMC performance | Excellent RS and CS immunity | Stable in noisy environments |
| Cover glass support | Up to 15 mm thickness | Compatible with thick protective cover glass |
Power & environmental
| Parameter | Value | Key Benefits |
| Supply voltage | 6–17 V | Wide input range simplifies power supply design |
| Power connector | Standard power jack | Easy to connect and integrate |
| Operating temperature | -20°C to +70°C | Designed for industrial and outdoor environments |
| RoHS compliance | RoHS3 compliant | Environmentally safe and regulation-compliant |

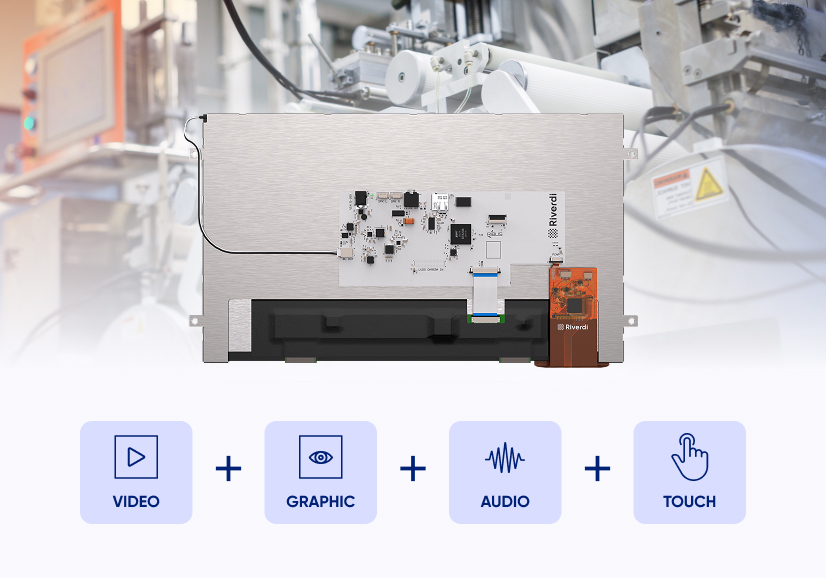

Advanced capabilities, reliability and simple implementation
The new module is built on the fifth generation of EVE technology, combining a proven programming model with expanded functionality.
With support for ASTC compression and a dedicated frame buffer in DDR3 memory, it enables smooth rendering of complex interfaces without placing additional load on the microcontroller’s memory. The system also offers advanced multimedia capabilities, including an integrated audio engine with I2S output and direct access to Flash, SD, and DDR3 memory—allowing synchronized audio and video playback.
Designed for demanding industrial environments, the display features optical bonding for increased durability and a high-sensitivity touch controller that operates reliably through thick gloves and in the presence of water.
Its most distinctive feature is the ability to process real-time video from cameras at full resolution and 60 frames per second—without the need for external systems.
Implementation benefits for technical teams
The Riverdi 15.6” EVE5 is designed to streamline the work of engineering teams at every stage of implementation.
- For hardware designers, it simplifies PCB development by reducing the number of required components. Standard SPI/QSPI interfaces and integrated support for video, audio, and touch further minimize design effort.
- Software developers benefit from the familiar EVE programming tools provided by Bridgetek: EVE Screen Designer and EVE Screen Editor
- EVE Asset Builder, comprehensive documentation, and the elimination of custom video codec implementation. With direct access to Flash, DDR3, and SD memory, managing graphic resources becomes fast and efficient.
- System architects will appreciate the reduced overall system complexity, scalability, and stability.
Example applications by industry
The unique integration of Full HD resolution, touch functionality, audio, and real-time video input makes the new Riverdi 15.6” EVE5 display suitable for a wide range of applications across multiple sectors.
- Medical: Enables direct, real-time display of images from endoscopes, ultrasound devices, and surgical cameras—enhancing diagnostic accuracy and clinical workflow.
- Industrial: Enhances quality control, machine vision, and process monitoring by eliminating the need for external video modules.
- Retail & Self-Service: Provides an engaging multimedia interface in a single device, ideal for interactive kiosks, point-of-sale systems, and digital signage.
- Transportation: Ensures high visibility even in direct sunlight, making it ideal for passenger information systems, fleet control panels, and route visualization.
Available variants
The Riverdi EVE5 15.6″ is available in five versions, tailored to different needs and applications:
- RVT156HKBNWN00 (Without touch, 1000 cd/m², without frame)
https://riverdi.com/product/eve5-rvt156hkbnwn00 - RVT156HKBFWN00 (Without touch, 1000 cd/m², with frame)
https://riverdi.com/product/eve5-rvt156hkbfwn00 - RVT156HKBNWCA0-B (With capacitive touch, optical bonding, 850 cd/m², aTouch design, without frame)
https://riverdi.com/product/eve5-rvt156hkbfwca0-b - RVT156HKBFWCA0-B (With capacitive touch, optical bonding, 850 cd/m², aTouch design, with frame)
https://riverdi.com/product/eve5-rvt156hkbfwca0-b - RVT156HKBNWC00-B (With capacitive touch, optical bonding, 850 cd/m², uxTouch design, without frame)
https://riverdi.com/product/eve5-rvt156hkbnwc00-b
Simplicity means efficiency
Thanks to its object-oriented programming model and integrated core functionalities, the Riverdi EVE5 significantly shortens time to market compared to MPU-based solutions, which often require managing numerous complex components.
Additionally, built-in, ready-to-use features reduce the Bill of Materials (BOM), making the EVE5 a more cost-effective option. The simplicity of software development, combined with platform stability, lowers the development effort—allowing teams to focus on delivering new features and innovations rather than troubleshooting technical challenges.
Summary
Powered by the fifth-generation Bridgetek BT820B (EVE5) controller, this Full HD industrial display combines advanced multimedia capabilities with a familiar, object-oriented programming model. It features enhanced ASTC compression for superior image quality, a dedicated DDR3 frame buffer for smooth UI performance, and synchronized audio-visual playback via an integrated audio engine with I²S output. With direct access to Flash, DDR3, and SD storage, it reduces reliance on the host MCU—streamlining development and accelerating time to market.
This advanced HMI solution enables seamless integration of real-time video feeds while delivering high-resolution graphics, responsive touch functionality, and robust performance in demanding environments.
Engineered for ease of implementation, it significantly reduces development time and costs—making it an ideal choice for a wide range of industrial and technical applications.
