The struggles for bigger operational space and lesser integration effort are over.
The 15.6” Full HD HDMI series—our largest plug-and-play displays to date—are now officially shipping from stock.
The product family delivers enterprise-grade visualization with consumer-grade simplicity, enabling any engineer to implement it and free up time for application development.
With up to 1000 cd/m² brightness, IPS full viewing angles, and zero driver installation required, the 15.6” series brings reliable performance into industries where fast integration and rugged design are essential All five variants are available immediately, with volume pricing and full technical support activated.
See available variants and shop now.
Complete technical overview
The 15.6” HDMI displays provide engineers with 66% more active area compared to 12.1” models, ensuring sufficient space for complex HMIs, dashboards, and multi-window visualization. Each module is manufactured to industrial-grade specifications, including optical bonding in touch variants for improved readability and reduced internal reflections.
All models include:
- Universal HDMI interface with automatic OS detection
- USB-C touch input powered by the ILITEK ILI2510 controller (for touch variants)
- Wide 6.0–27.0V DC power range for industrial integration
- Operating temperature: -20°C to +70°C for field-proven durability
- IPS full viewing angles with consistent brightness and contrast
To streamline your evaluation, see the full product lineup below. This comparison highlights the balance between brightness, bonding type, and mounting options—helping you choose the right variant for your application:
| Part Number | Touch | Brightness | Bonding | Mounting |
| SM-RVT156HKHNWN00 | No | 1000 cd/m² | Air | None |
| SM-RVT156HKHFWN00 | No | 1000 cd/m² | Air | Metal frame |
| SM-RVT156HKHNWCA0-B | PCAP | 850 cd/m² | Optical | None |
| SM-RVT156HKHFWCA0-B | PCAP | 850 cd/m² | Optical | Metal frame |
| SM-RVT156HKHNWC00-B | PCAP (uxTouch) | 850 cd/m² | Optical | Adhesive |
Ready to serve the most demanding applications
The 15.6” HDMI series unlocks design freedom across a wide range of use cases and markets:
- Industrial control panels
Durable HMIs for process monitoring, glove operation, and water resistance. - Medical equipment
Full HD visualization for diagnostic systems and clean-room use. - Public kiosks & ticketing
Bright, outdoor-readable displays that withstand daily wear. - Transportation
Wide viewing angles for vehicle dashboards and fleet systems. - IoT control hubs
Elegant touch control panels for smart home systems. - Retail & POS
High-brightness touch terminals for customer-facing systems. - Embedded systems development
Easy display connection for Raspberry Pi and other platforms.

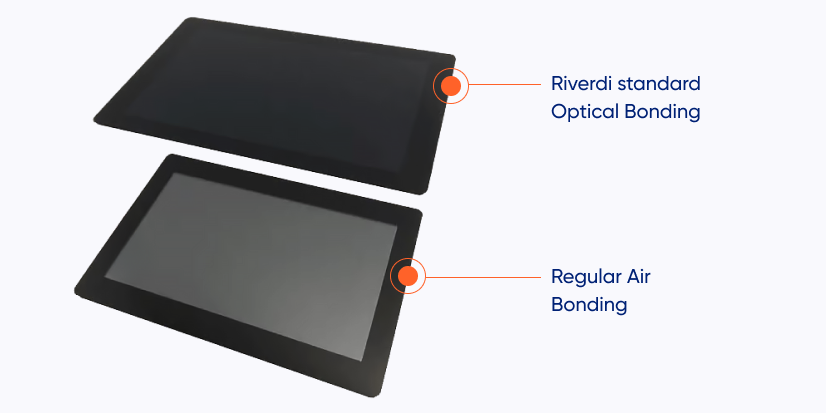

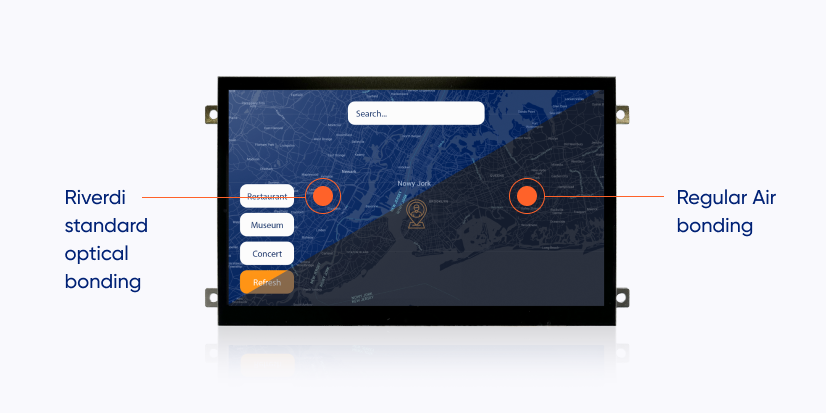

Optical bonding ensures crisp readability even in direct sunlight, while chemically strengthened glass and multi-touch responsiveness guarantee long-term durability.
Fast setup, activated support

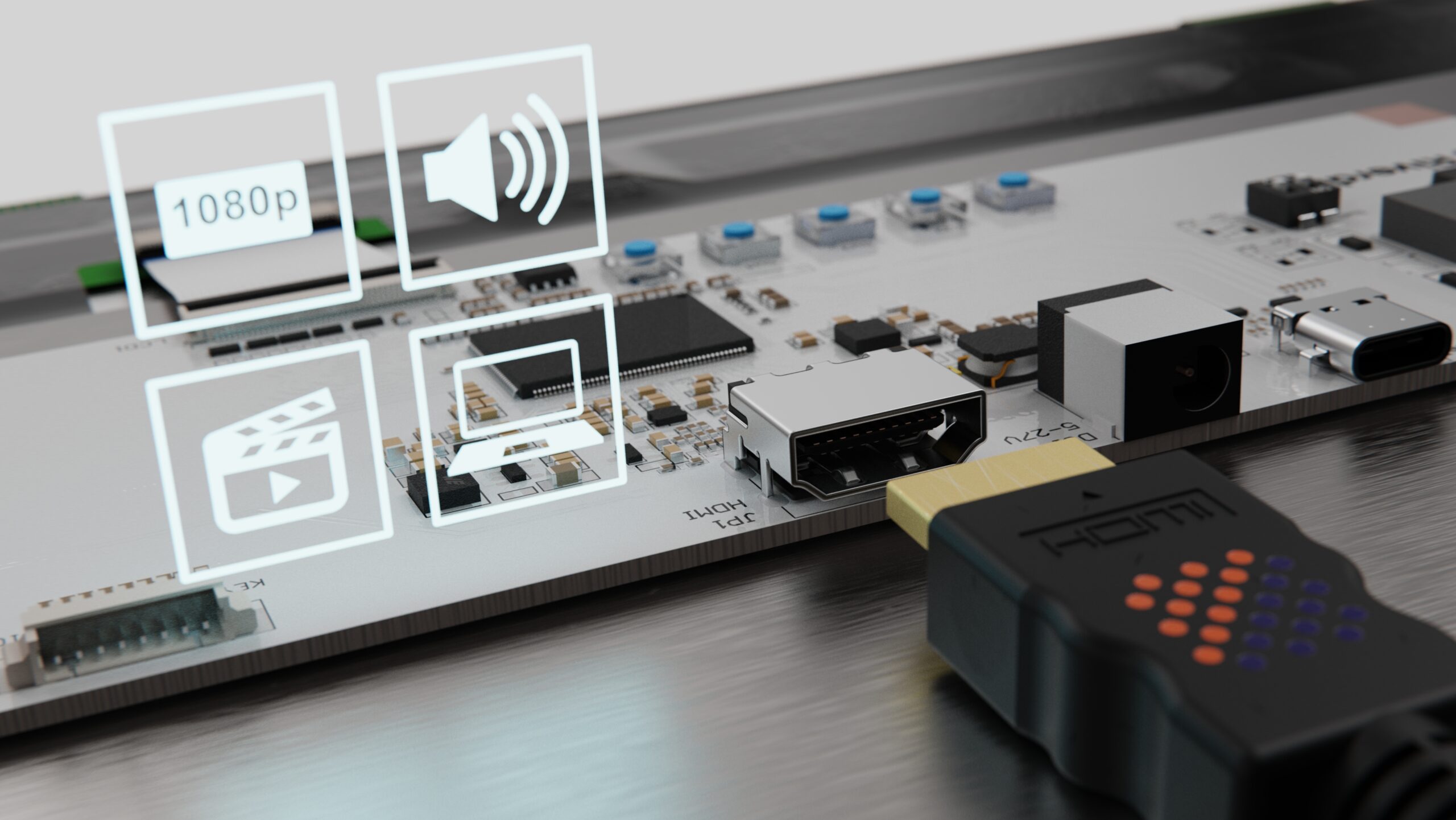

Setup requires no drivers, no configuration files, or compatibility matrices. Just connect HDMI and go with instant Full HD visualization—without writing a single line of driver code.. For touch models, a USB-C is all it takes to complete the interface.
With this premiere, Riverdi extends dedicated engineering support—from touch tuning to mechanical design consultation. You can scale prototypes to production with confidence, backed by the availability of volume pricing.
