Main features:

  • 15.6” TFT display
  • 1920x1080px resolution (FULL HD)
  • High brightness 850cd/m2
  • Full viewing angles (IPS)
  • Optical Bonding
  • Industrial projected capacitive touch screen
  • Plug and play HDMI interface (compatible with PC and SBC)
  • Plug and play USB-C interface for touch control
  • Support internal and external backlight PWM control
  • Multi-function OSD menu for brightness, contrast, saturation.
  • DC power jack 6.0-27.0V

Learn more about display customization options

DISCOVER OUR

Whitepaper

Achieve the perfect user-display interaction with the right Touch Sensor IC. Ever faced issues with phantom touch events or certification? Boost your R&D like a pro with our Whitepaper!

Description

A high-resolution, high-brightness IPS TFT display, enhanced with optical/air bonding and an industrial-grade touch screen. It offers the following advantages:

Plug-and-Play HDMI Interface
The widely used HDMI interface allows connection to any external HDMI input source. The display is automatically detected and can function as a system monitor. It can be connected directly to a PC (Windows/Linux) or any SBC (e.g., Raspberry Pi).

Plug-and-Play USB-C Touch Solution
The universal, symmetrical USB-C connector provides a convenient all-in-one solution for power supply, touch control, and data transfer. No external drivers are required.

Internal and External Backlight PWM Control with Multi-Functional OSD Menu
Brightness, contrast, and saturation can be easily adjusted. An external keyboard connector is also available if you require an additional control option.

Full HD Resolution
With its Full HD (1920×1080) resolution, this display delivers crisp, sharp images and vibrant colors, ensuring excellent readability and detail. It is ideal for applications requiring precise graphics, smooth video playback, and a professional viewing experience.







High brightness, IPS TFT

Typical surface luminance for a high brightness, IPS TFT displays is 800 up to 1000 cd/m² which means it is very bright even outdoors. The full viewing angles allow the user to interact with the display in a natural and intuitive way from every side. Please see the datasheet for more features.

Optical / Air Bonding

Enhancing the optical performance of your display

Optical bonding is a process of affixing the touch panel (or just the protective glass) to the display using a liquid adhesive, gel or dry (film). In general, this process improves the parameters of the module – the optical performance, as well as durability.

The air-gap is the reason for the phenomena of reflection of sunlight. So, when the display is off, the Visual Area (V.A) is never black – it is gray.

When removing the air gaps, we reduce the number of internal reflecting surfaces, which increase of optical performance. This phenomenon improves readability, by reducing the reflection and correct contrast.

Industrial Touch Screen

Reacts to the slightest touch

The PCAP (Projected Capacity touch panel) is classified as ‘industrial’ (as opposed to ‘consumer’) when it is able to operate correctly in more demanding, harsh conditions (i.e. disturbing electromagnetic fields around causing interferences with panel controller, water droplets present in the surrounding area also on panel glass), and react properly when touched by hands in gloves. It can be tuned at the factory, detect touch through thicker glass layers than consumer panels (6mm thick glass layer was tested with success in the Riverdi lab) and it uses an industrial grade chip controller. Such controllers have industrial manufacturer’s guidelines implemented and are guaranteed to be manufactured typically from 10 to 15 years without any changes.

Main features:

  • ILITEK Touch IC- ILI2510, with 10 years guaranteed availability
  • USB/I²C interface/Optional UART
  • Supports cover glass thickness up to 15mm
  • Supports double gloves operation – not only nitrile –even double thicker gloves
  • Working with water on the surface
  • Multi-touch, up to 5 fingers
  • Great EMC, RS (radiated susceptibility) and CS (conductive susceptibility) performance
  • Touch performance could be easily tuned to fit specific needs



For more information please see this page.

Traditional shape with modern functionality

aTouch was designed to provide the functionality of a modern Projected Capacitive Touch panel in a traditional shape and size perfect for an upgrade of an older device. Thanks to the absolute flat design and multi-touch feature, it will significantly raise the value of any project. It features chemically strengthened glass, which has increased durability, thanks to the process of ion-exchange. They are easy to assemble, easy to clean and easy to implement into your design.

Newly built devices most often use the uxTouch panel which is stuck to the outside of the device and is slightly larger than the display – it looks nice and modern. However, in older devices that only need an upgrade, the panel needs to be the same size as the display. Thus, there are many customers who require the solution provided by aTouch in order to mount the display from the inside into the classic hole.

Customized displays

You can customize displays in many different ways.

  • Change the color, shape, and size of the cover glass
  • Have your logo printed on the cover glass (or any other graphics you might need)
  • Add a different interface
  • Enhance the brightness of the screen
  • Change the thickness of the cover lens for the CTP
  • Choose a different viewing angle of the display
  • Change the pinout
  • Request different gasket assembly



As you can see the possibilities are endless. All you need to do is choose.

We will help you to get the perfect tailor-made product.

Additional information

Weight1139 g
Dimensions360.10 × 212.40 × 19.95 mm
Size (inch.)

15.6"

Touch Screen

Projected Capacitive Touch Panel

Touch Screen Bonding Technology

Optical Bonding

Touch Screen Shape

aTouch

Mounting Frame

Without Frame

Resolution

1920×1080

Brightness (cd/m²)

850

Viewing direction

Full Angle

Input Voltage (V)

6.0 – 27.0

Active area (mm)

345.76×195.19

Interfaces

HDMI

Touch Panel Interface

USB-C

Operating temp. (°C)

-20~70

Dot pitch (mm²)

0.1793×0.1793

LCD type

IPS, Normally black, TFT, Transmissive

Backlight Type

60 LEDs

Pixel Arrangement

RGB Vertical Stripe

Driver IC

RTD2555T

Touch Controller

ILI2510

Surface Treatment

Anti-glare

Do you need something else?

Contact us now
, , , , , , , ,

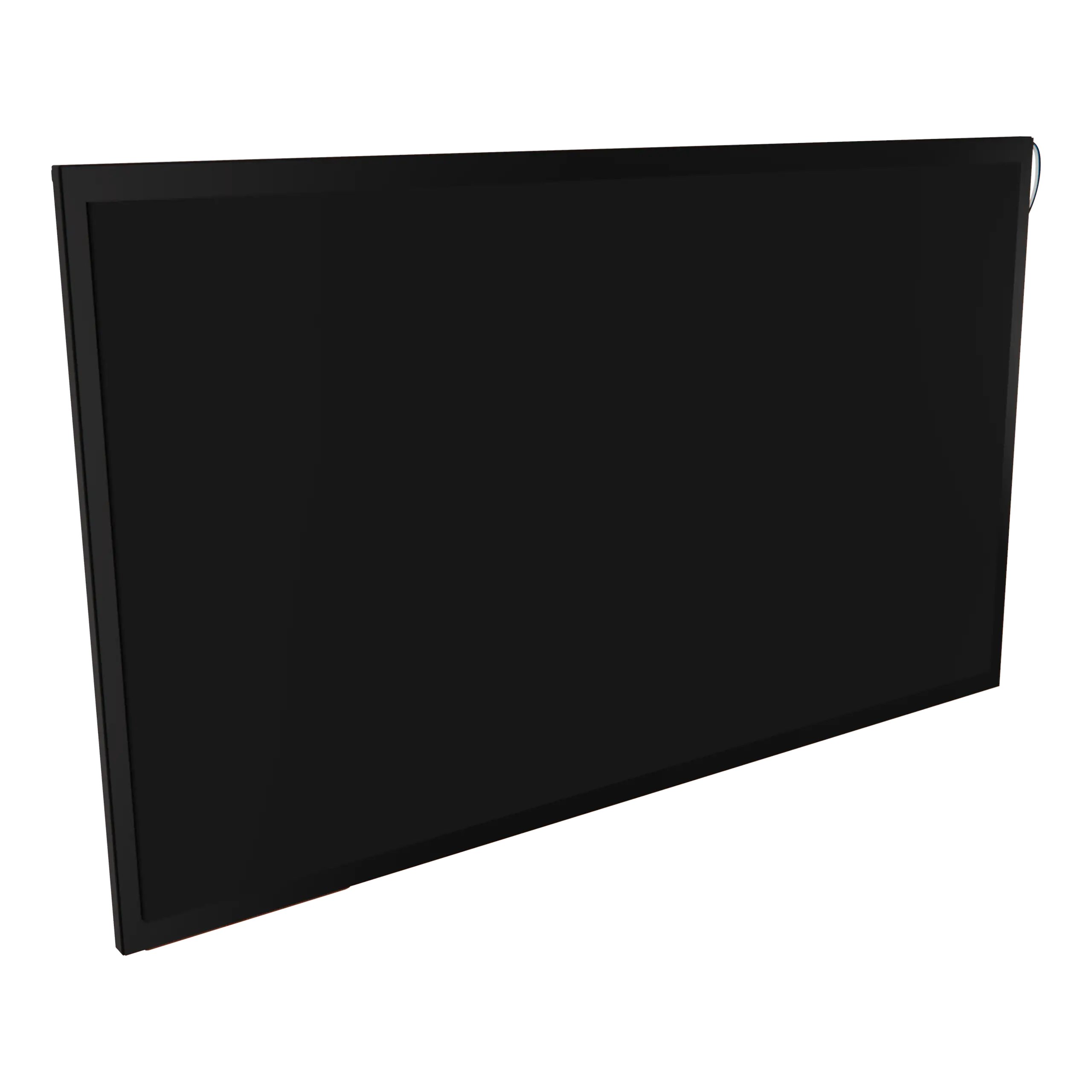

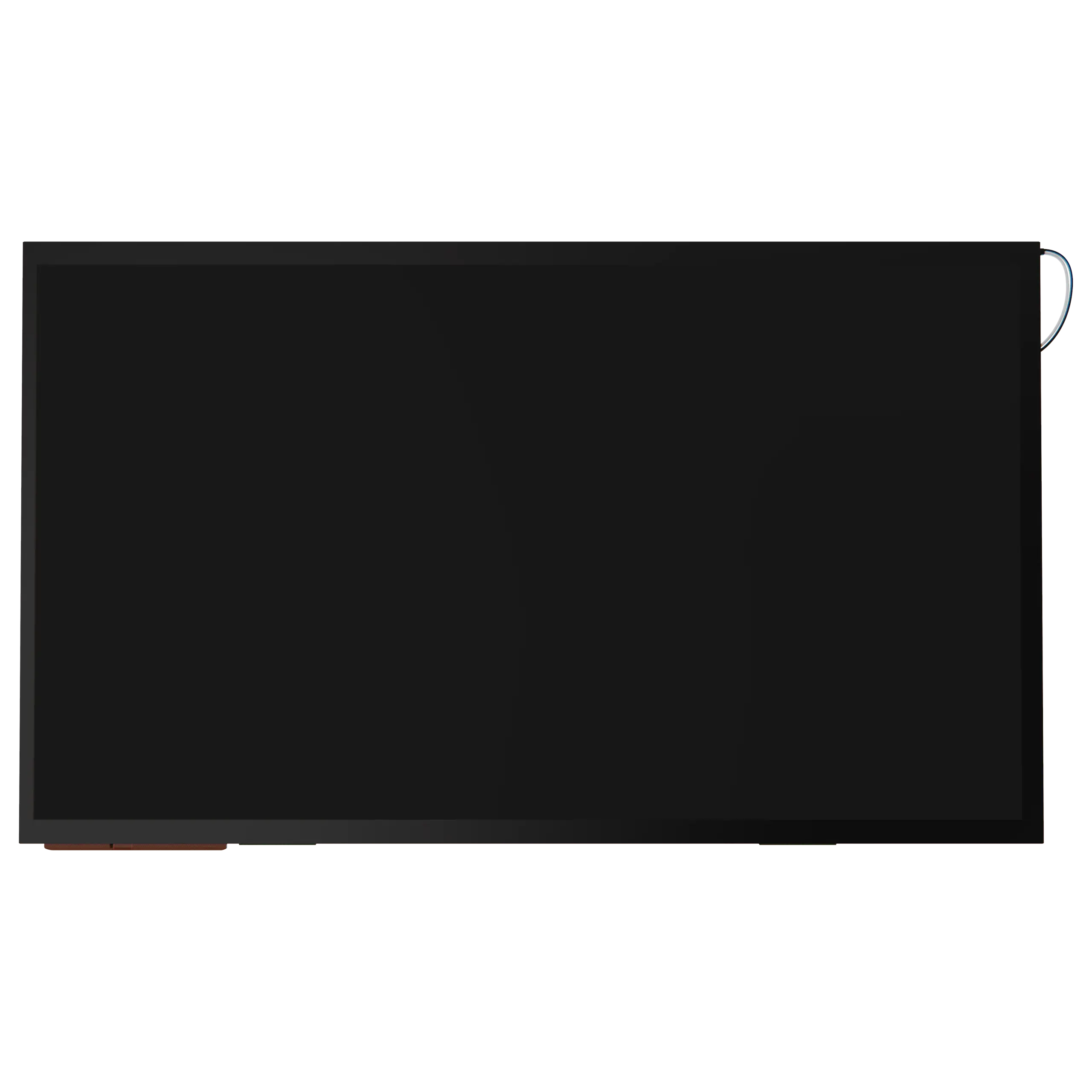

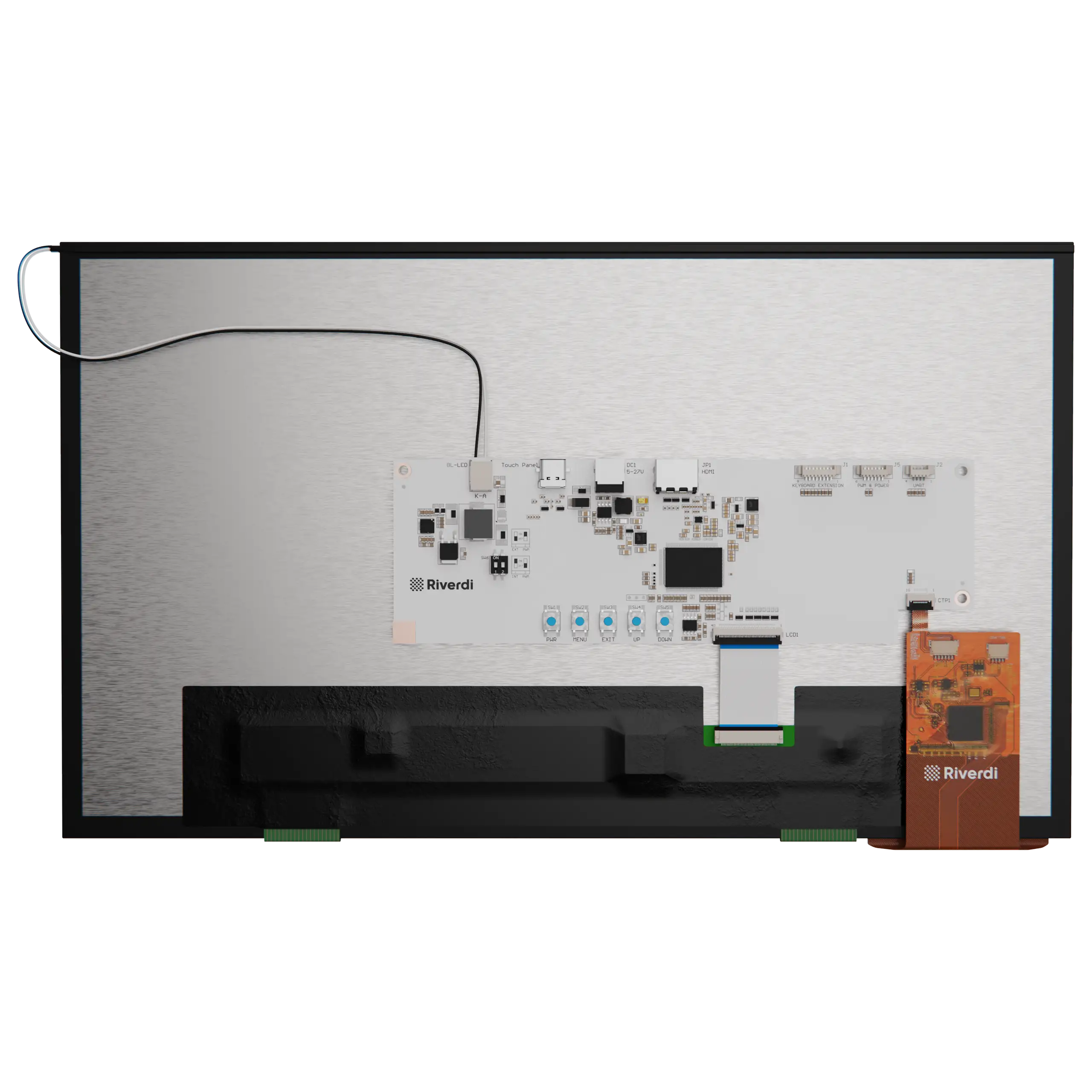

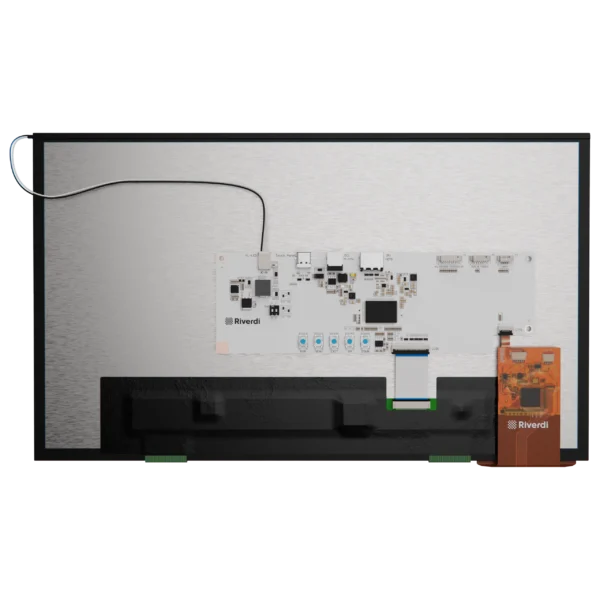

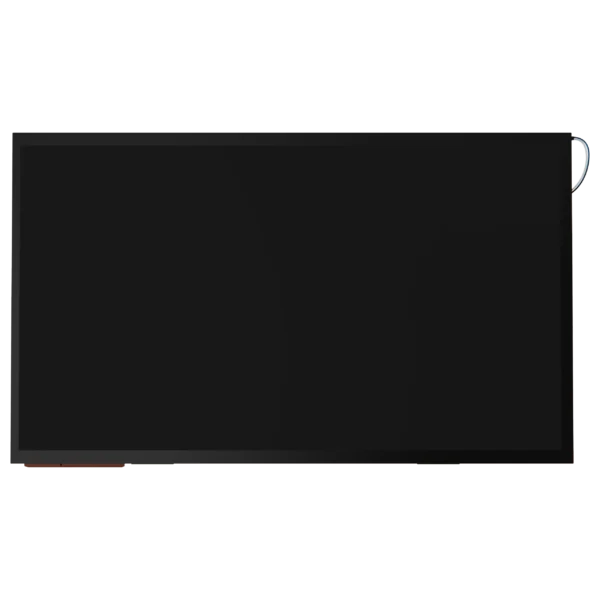

Plug and play display 15.6″ TFT LCD Full HD 1920x1080px, HDMI interface + Capacitive touchscreen – RVT156HKHNWCA0-B


Product variants

Touch Screen Bonding Technology

850 cd/m2

The process of affixing the touch panel to the display using a liquid adhesive. It improves the parameters of the module - the optical performance, as well as durability.

Optical Bonding

850 cd/m2

The process of affixing the touch panel to the display using a liquid adhesive. It improves the parameters of the module - the optical performance, as well as durability.

Touch Screen Shape

uxTouch

Most newly built devices use the uxTouch panel. It is slightly larger than the display and is stuck to the outside of the device. This gives a sleek and modern feel.

uxTouch

uxTouch

Most newly built devices use the uxTouch panel. It is slightly larger than the display and is stuck to the outside of the device. This gives a sleek and modern feel.

aTouch

It has all the same advantages of modern technology as uxTouch but without the decorative aspect. The display is mounted from the inside of the device and into the classic hole.

aTouch

aTouch

It has all the same advantages of modern technology as uxTouch but without the decorative aspect. The display is mounted from the inside of the device and into the classic hole.


$469.62 unit price

$469.62

Available from 19.11.2025

Part Number: SM-RVT156HKHNWCA0-B
