A new benchmark for large-format embedded displays is set. Riverdi’s largest 15.6” Full HD MIPI DSI display, fully compatible with Toradex Verdin SoMs, is now officially in stock and available for immediate purchase.
Built for engineering teams developing advanced HMIs, visualization panels, and industrial interfaces, this module is designed to scale your embedded project—without scaling your integration effort.

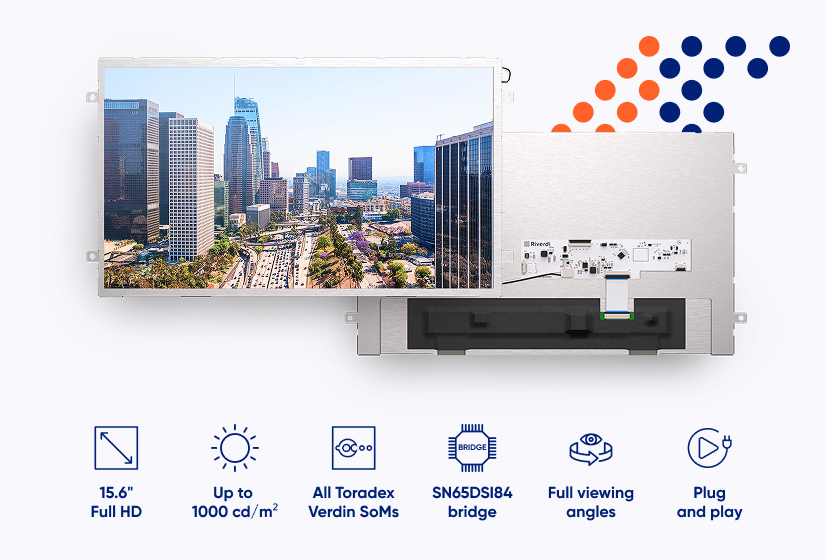

With native support for Dahlia and Mallow carrier boards, a preconfigured SN65DSI84 bridge, and industrial-grade PCAP touch, the 15.6” display sets a new standard for plug-and-play development in high-performance embedded systems. Whether you’re upgrading from smaller sizes like 10.1” or 12.1” or beginning a new Verdin-based project, this module offers a full-sized display with zero firmware adaptation required.
See available options and order now—available from stock with volume pricing tiers.
Complete technical specifications
Below is a precise overview of the technical specifications engineers and product developers need to validate compatibility and plan for system integration.
| Parameter | Specification |
| Display type | 15.6″ IPS TFT, Normally black, Transmissive |
| Display resolution | 1920×1080 (Full HD), RGB vertical stripe |
| Brightness | 1000 cd/m² (no touch) or 850 cd/m² (optical bonding) |
| Touch technology | Projected Capacitive Touch (PCAP), ILITEK ILI2510 controller |
| Touch features | Multi-touch (up to 5 points), water and glove support, up to 15 mm cover glass |
| Touch screen shape | uxTouch or aTouch |
| Interface | MIPI DSI |
| Driver IC | Preconfigured SN65DSI84 bridge |
| Power input | 6–18 V |
| Power consumption | ~15 W typical |
| Operating temperature | -20°C to +70°C |
| Mounting | flat-glass design, no housing holes |
| Dot pitch | 0.1793×0.1793mm² |
| Dimensions | 385.2 × 214.4 × 15.2mm (RVT156HKDNWC00-B variant) |
| Weight | 1176 g |

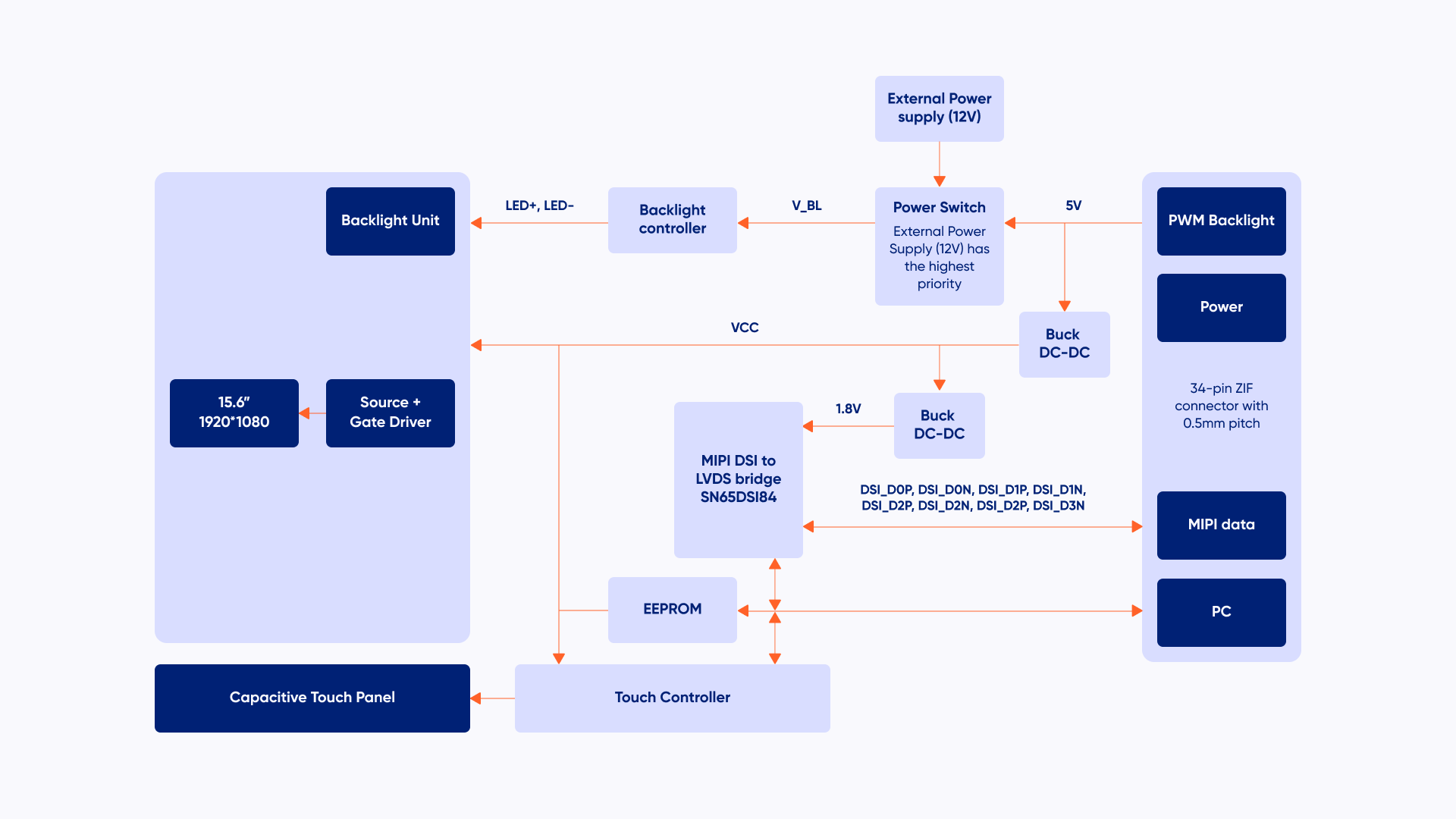

Diagram of Riverdi’s 15,6” Toradex display with touch panel
Designed for demanding applications
Riverdi’s 15.6” Toradex-compatible display is a versatile HMI platform designed for industrial-grade reliability and performance. Its wide-format Full HD touch screen combined with high brightness makes it ideal for outdoor and indoor use in:
- Industrial automation: Ruggedized HMIs with multi-touch interaction for factory floor systems and control panels.
- Medical devices: Diagnostic equipment and patient monitoring systems requiring precise, high-resolution visuals.
- EV charging stations: Weather-resistant, sunlight-readable displays for outdoor terminals.
- Transportation systems: Durable interfaces for vehicle dashboards, fleet tracking, and transport control.
- Smart vending & self-service: Kiosks and terminals with fast, intuitive multi-touch interaction.
- Building automation: Control units for smart building infrastructure, access control, and energy management.
- IoT gateways: Sophisticated dashboards and control UIs for real-time IoT data visualizations.
With full viewing angles and optical bonding, the largest Riverdi’s Toradex display offers optimal readability—even in extreme lighting. The chemically strengthened glass and sleek design without any holes in the housing ensure easy cleaning, resistance to dirt accumulation, and long-term durability in the field.
Fast and frictionless integration with engineering-grade support
Choosing Riverdi means going beyond hardware. Each display comes backed by a comprehensive support package: from Linux-ready drivers and reference documentation to hands-on assistance during integration. Our engineering team is available to help with touch tuning, signal optimization, and mechanical design consultation—so you can reduce development time and minimize risks in prototyping and production.
As an Authorized Toradex Partner, Riverdi ensures seamless compatibility between display modules and the Verdin SoM family. This direct alignment with Toradex guarantees:
- Verified out-of-the-box support for Dahlia and Mallow carrier boards
- Optimized MIPI DSI integration via the SN65DSI84 bridge
- Long-term availability and a shared commitment to industrial reliability
With over 10 years on the market, Riverdi delivers new displays as smart, customizable technology enablers—not just another screen variation. Every product innovation follows a single imperative: save by quality, not on quality. That’s why the new 15.6” Toradex display scales both size and implementation simplicity.
