For new design we recommend use High Brightness IPS Displays.

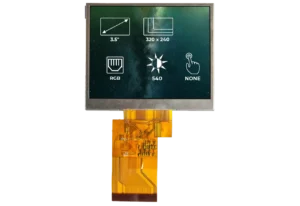

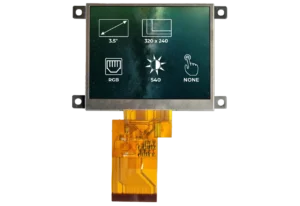

A Riverdi 3.5″ TFT display with a metal mounting frame that allows easy integration and an RGB interface.

The 320×240 resolution provides crisp and clear colors.

Description

Documentation

Customized displays

You can customize displays in many different ways.

  • Change the color, shape, and size of the cover glass
  • Have your logo printed on the cover glass (or any other graphics you might need)
  • Add a different interface
  • Enhance the brightness of the screen
  • Change the thickness of the cover lens for the CTP
  • Choose a different viewing angle of the display
  • Change the pinout
  • Request different gasket assembly



As you can see the possibilities are endless. All you need to do is choose.

We will help you to get the perfect tailor-made product.

Additional information

Weight48 g
Size (inch.)

3.5"

Resolution

320×240

Brightness (cd/m²)

540

Viewing direction

12:00 o'clock

Touch Screen

None

Interfaces

RGB

Active area (mm)

70.08×52.56

Dimensions (mm)

77.70×64.70×3.68

Operating temp. (°C)

-20~70

Dot pitch (mm²)

0.73×0.219

LCD type

Standard TN, TFT

Input Voltage (V)

3.3

Gray Scale Inversion Direct.

6:00 o'clock

Backlight Type

6 LEDs

Pixel Arrangement

RGB Vertical Stripe

Color Depth

16.7M

Driver IC

NV3035C

Surface Treatment

Anti-glare

Touch Screen Bonding Technology

None

Mounting Frame

With Frame

Touch Screen Shape

None

Do you need something else?

Contact us now
, ,

RVT3.5A320240TFWN00


$28.89 unit price

$28.89


Part Number: RVT3.5A320240TFWN00

Tag: Frame, RGB, RVT3.5A320240TFWN00
