For new design we recommend use EVE4.

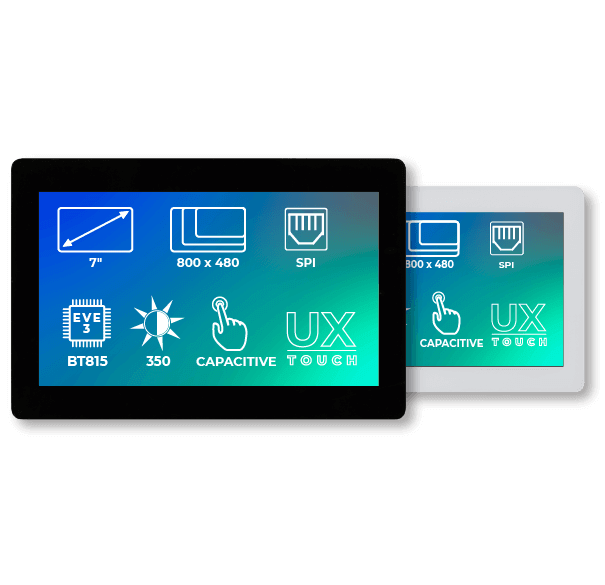

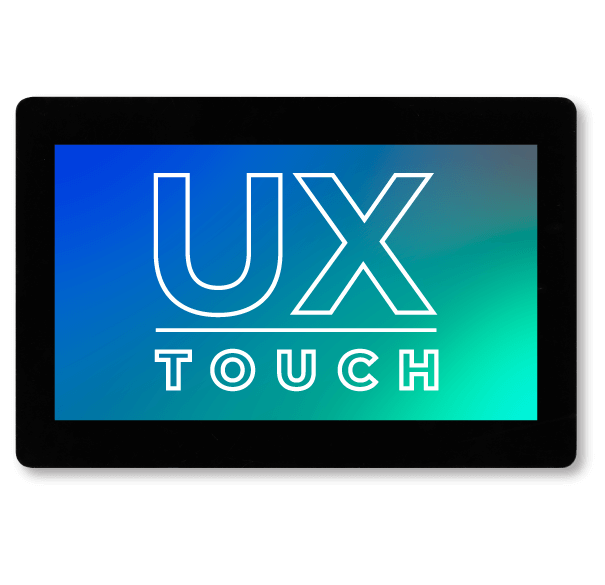

A Riverdi 7″ TFT display with a capacitive touchscreen and a decorative cover glass that comes in two versions: black and white.

The 800×480 resolution provides crisp and clear colors, while the screen is driven by the powerful BT815 graphics controller.

The display features the standard SPI/QSPI interface.

Description

Touch Screen

Reacts to the slightest touch

TFT display module with a capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.

Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.

Sleek design without any holes in the housing

A uxTouch display is a specially designed LCD TFT display which has a Projected Capacitive Touch (PTC). Thanks to their absolute flat design and multi-touch feature, they are the perfect choice for your project if you intend to have an interactive design and technology.

They feature a modern and sleek design without any holes in the housing.

On the technical side, they are a great option for industrial spaces since there is no dirt accumulation possible. They also feature chemically strengthened glass, which has increased durability, thanks to the process of ion-exchange. They are easy to assemble, easy to clean and easy to implement into your design.

BT81x (EVE 3)

A powerful graphics controller

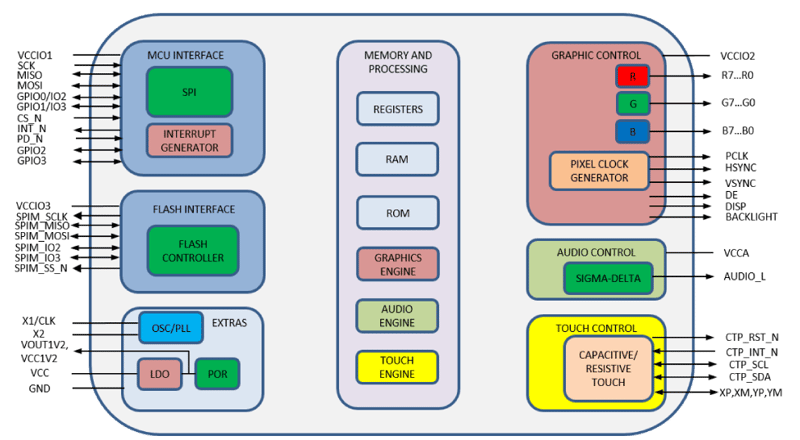

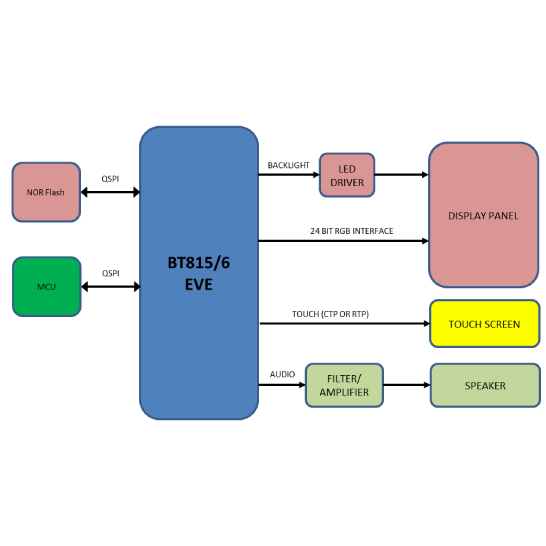

If your project requires a more complex execution Bridgetek’s graphics controllers are the right choice. The BT81x controller on this display is a part of a family of advanced graphics controllers targeted at embedded applications for generating high-quality Human Machine Interfaces (HMIs).
Riverdi displays with BT81x graphics controllers feature advanced EVE (Embedded Video Engine) user interface, that successfully combines the capacities of processing images, sound, and information from the touch panel.

EVE technology uses an object-oriented approach; this whole controller series is capable of simplifying the implementation of intelligent displays and shortening development time, see the datasheet.

EVE3 Advantages

The third generation of Embedded Video Engine (EVE) technology brings us the BT81x graphics controllers with numerous improvements and extended capabilities.

One of the most prominent advantages, in comparison with the two older versions, is support for the Adaptive Scalable Texture Compression (ASTC) algorithm. This means image quality can be significantly enhanced without needing greater bandwidth to be allocated as the compression algorithm allows for smaller compressed files. This, in turn, saves up a lot of memory space required by larger fonts and data-heavy images.

Further memory management and system resource improvements are available in the form of a dedicated QSPI host port for attaching an external flash memory.

Documentation

Customized displays

You can customize displays in many different ways.

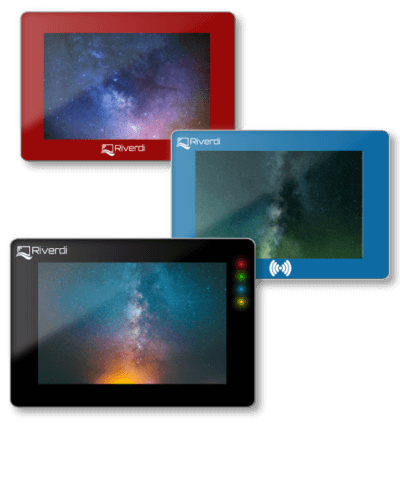

  • Change the color, shape, and size of the cover glass
  • Have your logo printed on the cover glass (or any other graphics you might need)
  • Add a different interface
  • Enhance the brightness of the screen
  • Change the thickness of the cover lens for the CTP
  • Choose a different viewing angle of the display
  • Change the pinout
  • Request different gasket assembly



As you can see the possibilities are endless. All you need to do is choose.

We will help you to get the perfect tailor-made product.

Additional information

Weight236 g
Active area (mm)

154.08×85.92

Dimensions (mm)

179.96×119.00×10.81

Operating temp. (°C)

-20~70

Dot pitch (mm²)

0.1926×0.179

LCD type

TFT

Input Voltage (V)

3.3

Viewing direction

12:00 o'clock

Gray Scale Inversion Direct.

6:00 o'clock

Backlight Type

21 LEDs

Pixel Arrangement

RGB Vertical Stripe

Color Depth

16.7M

Controller

BT815

Surface Treatment

Clear

Resolution

800×480

Addons

LED Inverter

Brightness (cd/m²)

350

Touch Screen

Projected Capacitive Touch Panel

Interfaces

SPI/QSPI

Driver IC

FT5426 DQ8, HX8264+HX8664

Touch Screen Bonding Technology

Air Bonding

Mounting Frame

Without Frame

Touch Screen Shape

uxTouch
