For new design we recommend use EVE4.

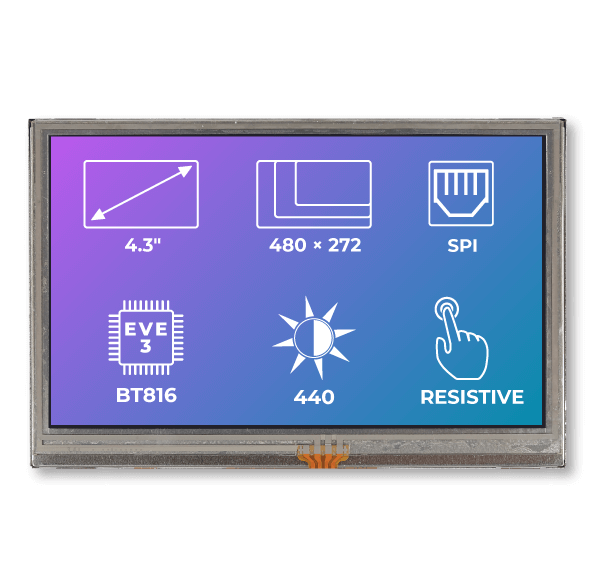

A Riverdi 4.3″ TFT display with a resistive touchscreen built-in LED inverter.

The 480×272 resolution provides crisp and clear colors, while the screen is driven by the powerful BT816 graphics controller.

The display features the standard SPI/QSPI interface.

Description

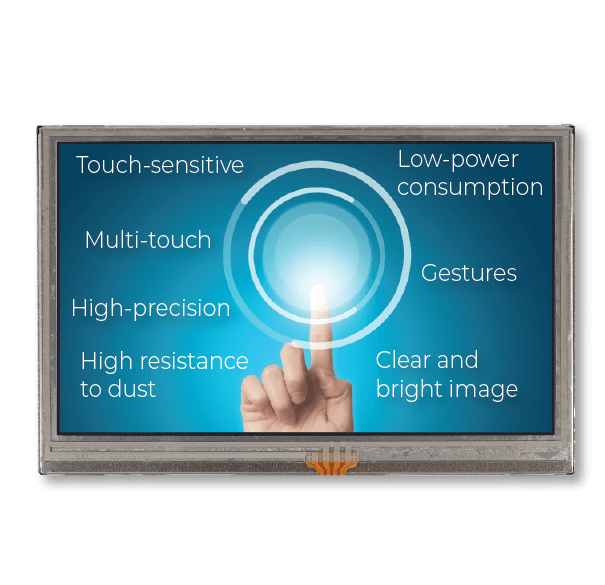

Touch Screen

Reacts to the slightest touch

TFT display module with a capacitive touchscreen. These types of screens are extremely touch-sensitive and allow for clear and bright images. We recommend a capacitive touchscreen display if your application needs multi-touch, gestures, and high-precision.

Capacitive touchscreens react to the slightest touch, and no pressure is needed for detection.

BT81x (EVE 3)

A powerful graphics controller

If your project requires a more complex execution Bridgetek’s graphics controllers are the right choice. The BT81x controller on this display is a part of a family of advanced graphics controllers targeted at embedded applications for generating high-quality Human Machine Interfaces (HMIs).
Riverdi displays with BT81x graphics controllers feature advanced EVE (Embedded Video Engine) user interface, that successfully combines the capacities of processing images, sound, and information from the touch panel.

EVE technology uses an object-oriented approach; this whole controller series is capable of simplifying the implementation of intelligent displays and shortening development time, see the datasheet.

EVE3 Advantages

The third generation of Embedded Video Engine (EVE) technology brings us the BT81x graphics controllers with numerous improvements and extended capabilities.

One of the most prominent advantages, in comparison with the two older versions, is support for the Adaptive Scalable Texture Compression (ASTC) algorithm. This means image quality can be significantly enhanced without needing greater bandwidth to be allocated as the compression algorithm allows for smaller compressed files. This, in turn, saves up a lot of memory space required by larger fonts and data-heavy images.

Further memory management and system resource improvements are available in the form of a dedicated QSPI host port for attaching an external flash memory.

Documentation

Customized displays

You can customize displays in many different ways.

  • Change the color, shape, and size of the cover glass
  • Have your logo printed on the cover glass (or any other graphics you might need)
  • Add a different interface
  • Enhance the brightness of the screen
  • Change the thickness of the cover lens for the CTP
  • Choose a different viewing angle of the display
  • Change the pinout
  • Request different gasket assembly



As you can see the possibilities are endless. All you need to do is choose.

We will help you to get the perfect tailor-made product.

Additional information

Weight75 g
Active area (mm)

95.04×53.86

Dimensions (mm)

105.50×67.20×7.90

Operating temp. (°C)

-20~70

Dot pitch (mm²)

0.066×0.198

LCD type

TFT

Input Voltage (V)

3.3

Viewing direction

12:00 o'clock

Gray Scale Inversion Direct.

6:00 o'clock

Backlight Type

10 LEDs

Pixel Arrangement

RGB Vertical Stripe

Color Depth

16.7M

Controller

BT816

Surface Treatment

Anti-glare

Resolution

480×272

Size (inch.)

4.3"

Addons

LED Inverter

Brightness (cd/m²)

440

Touch Screen

Resisitive

Interfaces

SPI/QSPI

Driver IC

HX8257A

Do you need something else?

Contact us now
,

RiTFT-43-RES


$53.80 unit price

$53.80


Part Number: SM-RVT43ALBNWR00
