Description

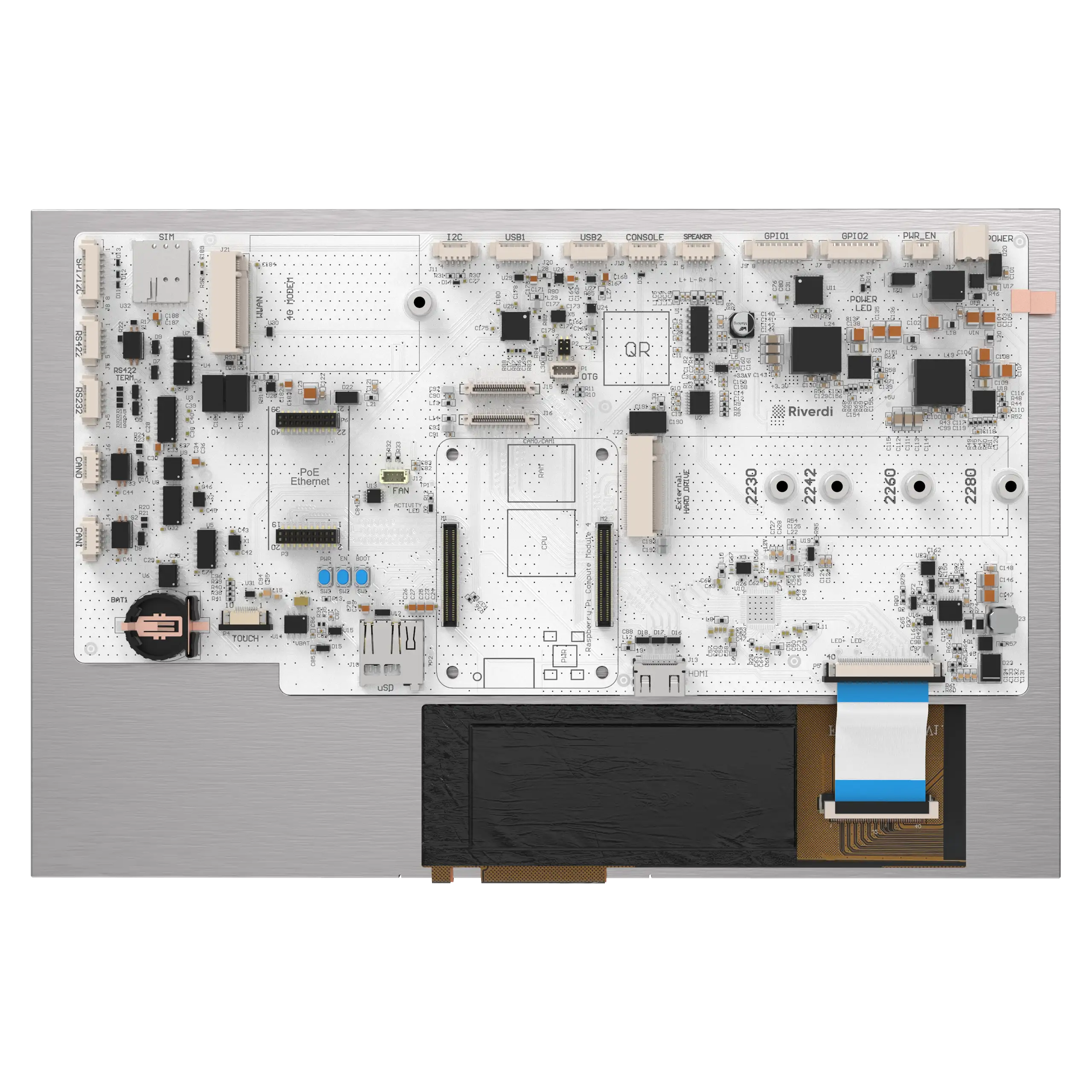

Compute Module 4 platform

The CM4 LCD 10.1″ platform is a compact and versatile carrier designed for the Raspberry Pi Compute Module 4 (CM4). It provides convenient access to key interfaces and integrates directly with a 10.1″ display, including backlight control, touch support, and power management — delivering a complete plug-and-play platform for rapid development and deployment.

Designed for industrial and embedded applications, the board combines robust connectivity options — including PoE power input, HDMI output, USB, RS232, RS485, CAN, and GPIO interfaces — with expansion capability through an M.2 B-key slot for cellular modems.

Optimized for cost-efficient small and medium-scale production, the CM4 LCD platform delivers a ready-to-deploy foundation for IoT, automation, and HMI systems, perfectly matched to the 10.1″ LVDS display for reliable and seamless operation.

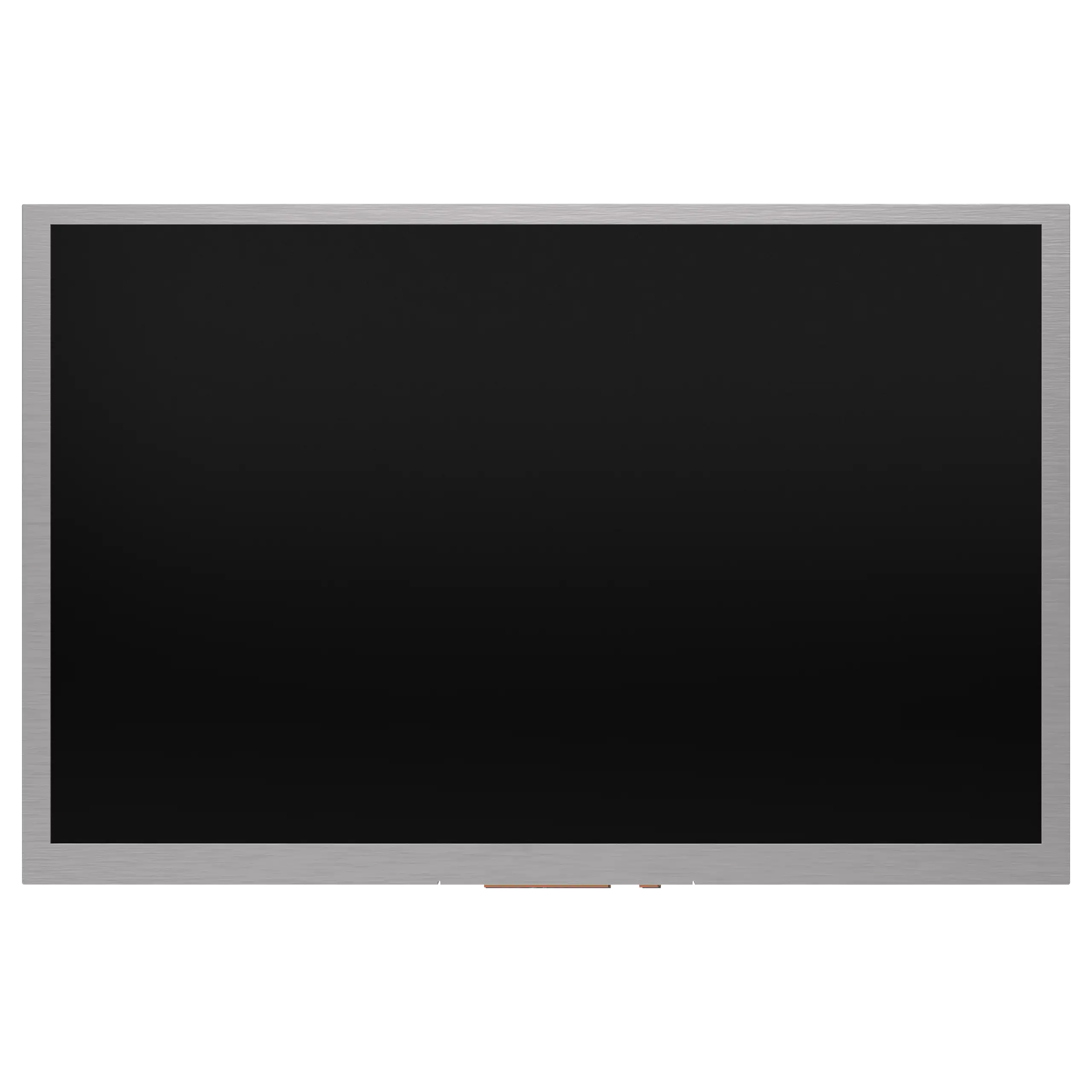

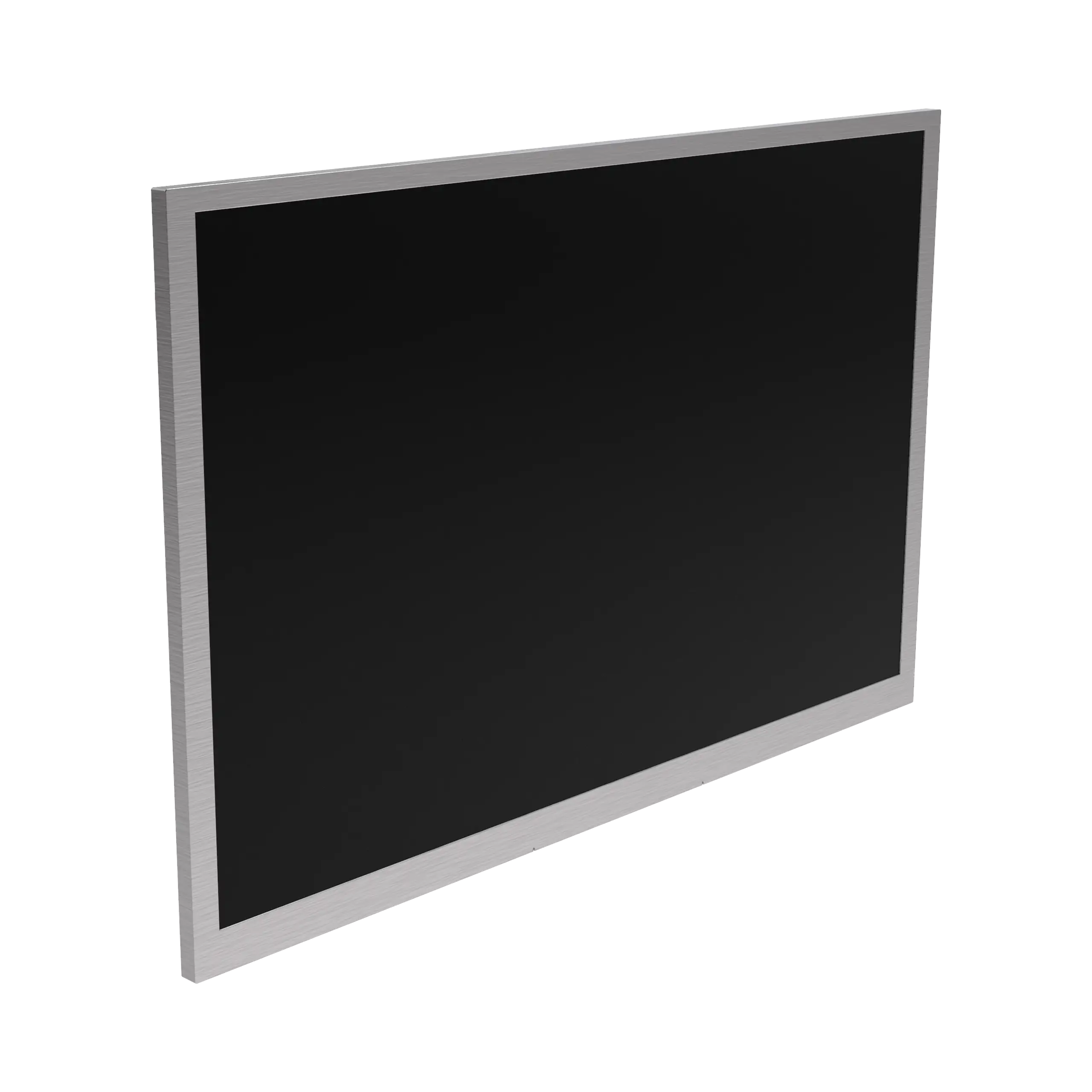

High brightness, IPS TFT

Typical surface luminance for a high brightness, IPS TFT displays is 800 up to 1000 cd/m² which means it is very bright even outdoors. The full viewing angles allow the user to interact with the display in a natural and intuitive way from every side. Please see the datasheet for more features.

Glass in displays comes from TFT factories in large sheets called mother glass and is sorted by classes. These classes are governed by ISO standards which identify three levels of allowable number of bad pixels.

Apart from the visual discomfort bad pixels cause, there are very important practical disadvantages to working on a screen missing a seemingly tiny dot. The importance will vary across industries but it is perhaps best illustrated in medical devices where even a single bad pixel may change image enough to lead to wrong conclusions and dramatic consequences.

In our 10.1” displays we add an additional layer of tests as standard so we do not miss a single item with a bad pixel. There is a 100% ZERO bad pixels guarantee.

Customized displays

You can customize displays in many different ways.

• Change the color, shape, and size of the cover glass
• Have your logo printed on the cover glass (or any other graphics you might need)
• Add a different interface
• Enhance the brightness of the screen
• Change the thickness of the cover lens for the CTP
• Choose a different viewing angle of the display
• Change the pinout
• Request different gasket assembly

As you can see the possibilities are endless. All you need to do is choose.

We will help you to get the perfect tailor-made product.
