Caratteristiche principali:

  • Display TFT da 15,6
  • Risoluzione 1920x1080px (FULL HD)
  • Alta luminosità 1000cd/m2
  • Angoli di visione completi (IPS)
  • Controller grafico BT820B
  • Interfaccia QSPI/SPI
  • Amplificatore audio con interfaccia audio I2S
  • Alimentazione 6-17V
  • Dimensione della flash esterna: 1Gbit (128MB)
  • SDRAM DDR3 esterna: 4Gbit

Scopri le opzioni di personalizzazione del display



SCOPRI IL NOSTRO

Carta bianca

Ottieni un’interazione perfetta tra utente e display con il giusto IC per sensore tattile. Hai mai avuto problemi con eventi di tocco fantasma o con la certificazione? Potenzia la tua ricerca e sviluppo come un professionista con il nostro Whitepaper!

Descrizione

Bridgetek BT820B MCU



The BT820B represents the fifth generation of the Embedded Video Engine (EVE) family, designed for creating advanced graphical interfaces in embedded systems. It enables the development of sophisticated, touch-friendly HMIs on large LVDS displays while retaining the familiar object-oriented programming model from previous EVE iterations.

This powerful graphics controller drives high-resolution LVDS displays (up to 1920 x 1200), offering smooth and complex interface rendering through a dedicated frame buffer in external DDR3 SDRAM, along with a 16 Kbyte display list. With direct access to storage devices like NOR/NAND Flash and SD cards, the BT820B can retrieve and display images, videos, animations, and fonts without overburdening the host MCU’s flash memory.

It also integrates live video seamlessly (up to 1920 x 1200 at 60fps), with an LVDS video input port that supports real-time video processing, effects, and image enhancements.

Touch functionality is enhanced, with support for external capacitive touch controllers through an I2C interface. Audio playback and effects are also supported, using either stereo PWM/Delta-Sigma or I2S outputs.



BT820 Block Diagram



A powerful graphics controller

If your application demands a visually stunning and sophisticated GUI built using lightweight software—and capable of running on even the smallest microcontrollers with SPI or QSPI interfaces—the BT820B series is an ideal choice.

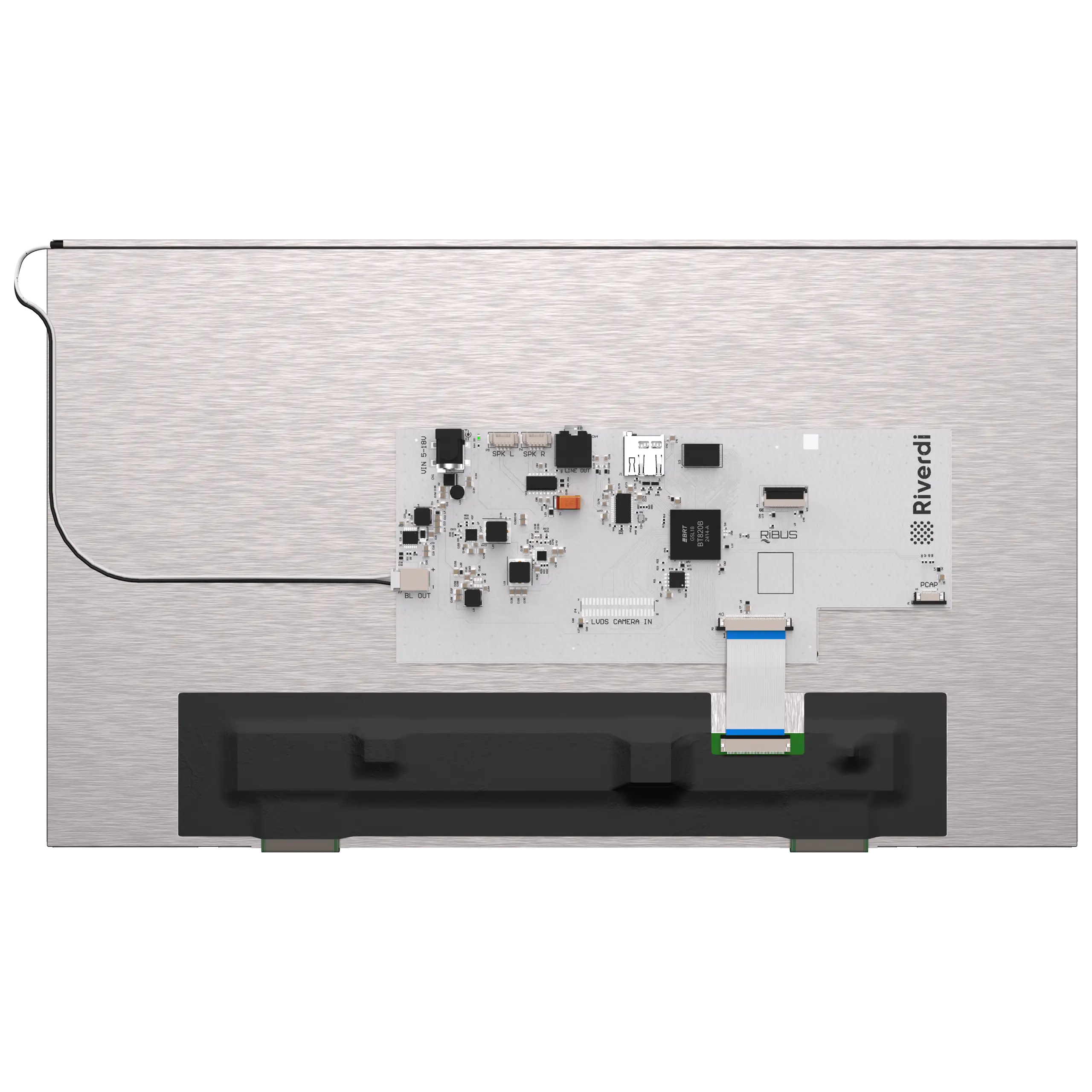

At the heart of our display board, the BT820B controller stands as the most powerful member of the advanced graphics controller family, designed specifically for embedded systems requiring high-quality Human Machine Interfaces (HMIs).

The picture below shows a block diagram of EVE (Embedded Video Engine) board and the interfaces of BT820B controller to accompanying devices on the module.



Riverdi’s displays powered by BT820B graphics controllers feature advanced EVE (Embedded Video Engine) technology, seamlessly integrating image rendering, audio processing, and touch panel input for a rich user interface experience.

Leveraging an object-oriented approach, EVE technology simplifies the development of intelligent displays and significantly reduces time to market. For full technical details, please refer to the datasheet.

High resolution displays support

The fifth generation of Embedded Video Engine (EVE) technology introduces the BT820B graphics controller, delivering significant improvements and extended capabilities compared to the former four generations.

With the BT820B, Full HD resolution (1920 × 1080) is now available—marking a major leap forward in display performance. Compared to the previous EVE4 series, where the maximum supported resolution was WXGA (1280 × 800), the BT820B significantly raises the bar in terms of graphical output and interface possibilities.

Adaptive Scalable Texture Compression (ASTC)

One of the most important advantages, compared to the first two EVE versions, is the support for the Adaptive Scalable Texture Compression (ASTC) algorithm—first introduced in the EVE3 and maintained in the EVE4 and the new EVE5 series. This allows for significantly enhanced image quality without requiring greater bandwidth. In certain situations, the compression algorithm enables the use of smaller graphic files without compromising visual quality. As a result, it helps save considerable memory space that would otherwise be consumed by large font files and data-heavy images in EVE1 and EVE2 controllers.

See the datasheet for further information.

The Riverdi EVE5 boards include a dedicated flash memory chip, connected to the BT820B controller through a high-speed QSPI interface. This setup allows the controller to access and manage the memory contents directly, though doing so consumes some of the controller’s processing time and resources.

The flash memory on the EVE5 board is twice the size of that used in the previous generation EVE4, offering significantly more storage capacity for image resources.

The primary function of this flash memory is to store image files that will be displayed during the module’s normal operation. Based on tests using actual JPEG images with suitable resolutions, the flash memory on the EVE5 board can accommodate up to approximately 260 JPEG files—assuming high compression and usage with a 15.6” Full HD display.

However, these calculations should be treated as estimates. Due to the nature of JPEG compression, file sizes vary depending on image content—such as color complexity, contrast, and detail—not just resolution. For accurate storage planning, it’s recommended to repeat the calculation using the specific JPEG files intended for use.

Audio Playback

The BT820 controller is capable of audio playback through its integrated audio outputs. Audio files can be sourced from flash memory, an SD card, or streamed directly into DDR memory by the MCU. The Audio Engine within the BT820 handles retrieval of audio samples and routes them to the appropriate audio output channels.

For audio formats such as Linear PCM, μLAW, ADPCM, and S16, the Audio Engine duplicates the audio signal to both the left and right channels. However, when using the S16S format, stereo playback is supported: left channel data is directed to the left output and right channel data to the right output.

The BT820 supports PCM audio with 16-bit resolution only. Compatible sampling rates for Linear, S16, and S16S formats include 8 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, and 48 kHz.

It’s important to note that μLAW and ADPCM formats are not supported for standard audio playback. These formats are only supported when used as part of video playback, where the audio has been encoded using μLAW or ADPCM respectively.

Alta luminosità, IPS TFT

La luminanza di superficie tipica di un display IPS TFT ad alta luminosità è di 800 fino a 1000 cd/m², il che significa che è molto luminoso anche all’aperto. Gli angoli di visione completi consentono all’utente di interagire con il display in modo naturale e intuitivo da ogni lato. Per ulteriori caratteristiche, consultare la scheda tecnica.

Display personalizzati

Puoi personalizzare i display in molti modi diversi.

  • Modifica del colore, della forma e delle dimensioni del vetro di copertura
  • Fate stampare il vostro logo sul vetro della copertina (o qualsiasi altra grafica di cui abbiate bisogno)
  • Aggiungere un’interfaccia diversa
  • Migliorare la luminosità dello schermo
  • Modificare lo spessore della lente di copertura per il CTP
  • Scegliere un diverso angolo di visualizzazione del display
  • Modifica della piedinatura
  • Richiesta di un gruppo di guarnizioni diverso



Come potete vedere, le possibilità sono infinite.
Tutto quello che dovete fare è scegliere.

Vi aiuteremo a ottenere il prodotto perfetto su misura.

Informazioni aggiuntive

Peso653 g
Dimensioni360.00 × 212.30 × 20.25 mm
Size (inch.)

15.6"

Touch Screen

Nessuno

Touch Screen Bonding Technology

Nessuno

Interfaces

SPI/QSPI

Mounting Frame

Senza telaio

LCD type

IPS, Normalmente nero, Trasmissivo, TFT

Viewing direction

Angolo completo

Active area (mm)

345.76×195.19

Dot pitch (mm²)

0.1793×0.1793

Pixel Arrangement

RGB Vertical Stripe

Resolution

1920×1080

Brightness (cd/m²)

1000

Graphics controller

BT820B (EVE5)

Connettore host

Ribus, ZIF 20 pin, passo 0,5 mm, contatto laterale

Input Voltage (V)

6.0

Informazioni supplementari|Tensione di alimentazione per la retroilluminazione (V)

6.0 ÷ 17.0

Surface Treatment

Antiriflesso

Operating temp. (°C)

-20~70
